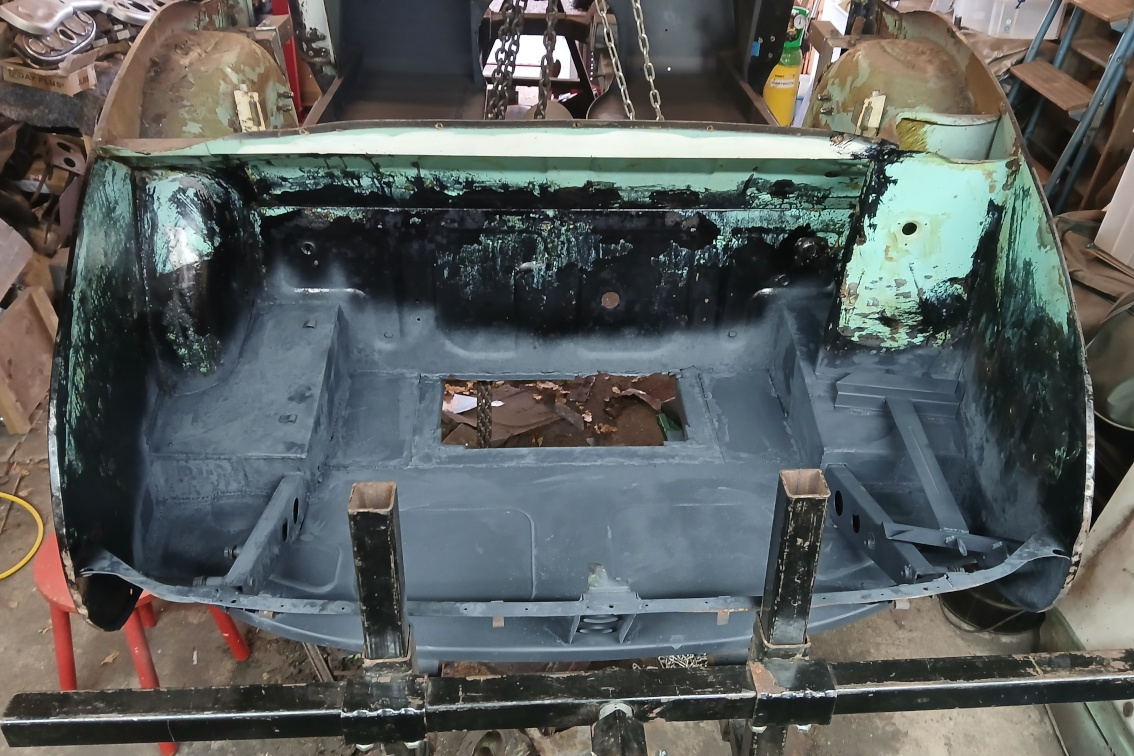

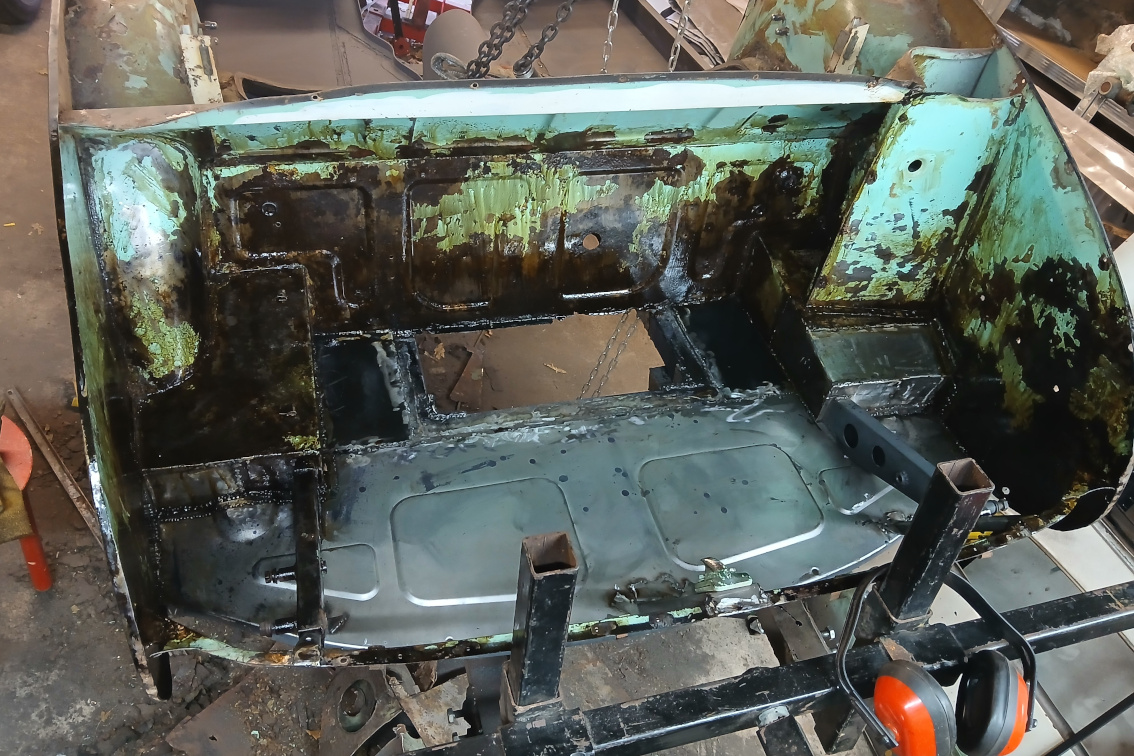

The boot floor was in a similar condition to the rest of the floors in the car - totally rotted out! This all needed to be cut out and replaced by an off-the-shelf one piece panel. The right hand Rear Chassis Extension (that affixes the bumper) was also in a bad state so this was replaced with a purchased new one. To gain access for cutting and welding, part of the panel behind the battery was openned up, but this needed replacing too anyway.
The lower parts of the rear inner wings were in a bad state too, but upper sections were OK. Repair panels for these were fabricated and welded in.
